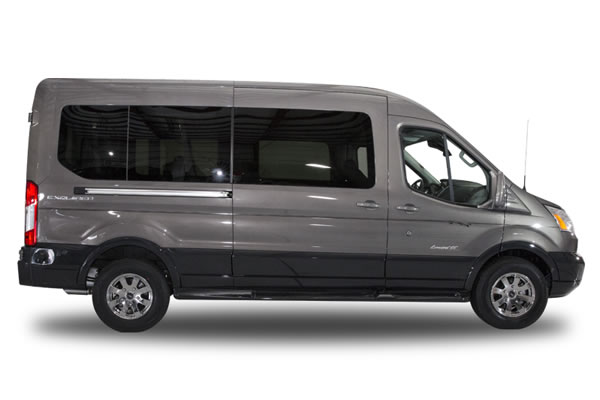

Ford Transit Factory Medium Roof
The Extended “Medium Roof” Ford Transit by Explorer is a unique and accommodating vehicle. This van will maximize your headroom while still giving you all of the creature comforts of the more traditional Explorer Vans. Have Mobility needs? Take a second look at this van.
Built on a 250 Chassis with a 148″ Wheelbase
This van is only 18″ longer than the 7 Passenger Ford Transit. The short front end and tight turning radius make it incredibly easy to drive for a larger vehicle. With the Ford factory Medium Roof you’ll have an increased side door height of 63″ and a rear door height of 62.7″, perfect for mobility equipment or simply giving your passengers a comfortable way in and out.
Inside you’ll have an amazing overall floor to ceiling height of 72″. Think of the ease at which you and your passengers will be able to move about the cabin with that amount of headroom. For folks who need mobility or other specialty equipment installed the raised doors and raised roof of this “Medium Roof” van are sure to make your life easier. And isn’t that the point.
CONVERSION STANDARD FEATURES

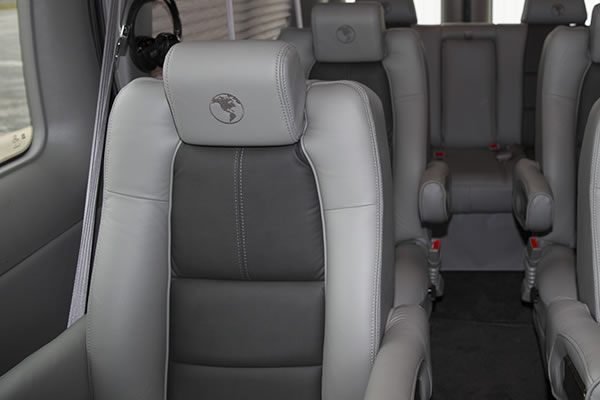

INTERIOR STANDARD FEATURES:
- Center Floor Console with USB Port and 12V Power Outlet
- Molded Automotive-Style Walls and Headliners
- Window Ledges with Enhanced Automotive
- Décor and Dual Drink Holders
- Four High-Back, Low-Profile Integrated Headrest Seating with
- Automotive-Style Seat Skirting, High-Density Molded Foam
- Quick-Release Middle Captain Chairs
- Three-Way Rear Sofa with Armrests and Headrests
- (Regular Wheelbase) with Expandable Storage on Back
- Heavy-Duty Fade- and Stain-Resistant Fabrics
- Full One-Piece Carpet with Closed-Cell Foam
- Floor for Insulation and Noise Resistance
- Carpet Floor Mats for all Seats
- Six Sets of Two-Position Reading Lamps
- Aluminum Step Plates with No-Skid Strips in Stepwells
- Color-Coded Wiring Harness with Automotive Plugs
- Easy-Access Fuse Panel
- Backlit Control Panel for all Interior Lighting
- Indirect Lighting Package
- Auxiliary 12V Power Outlets
- Cloth Shades on all Windows
- Leather Double-Stitched Window Valances
- Factory Radio and CD with Acoustical Six-Speaker Sound System
- Two Garment Hangers
- Assist Handles above Cargo Doors
- Automotive-Style Leather Door Kits with
- Built-In Drink Holders on Side Doors
- Automotive-Style Double-Stitched Leather Wings
- with Storage Compartments (Sport Roof only)
- Lighted Ceiling Panel
EXTERIOR STANDARD FEATURES:
- Rain-Sensitive Interval Wipers
- Molded Automotive-Style Walls and Headliners
- Hinged Side Cargo Doors
- Dual Power Mirrors
- Spare Tire and Wheel

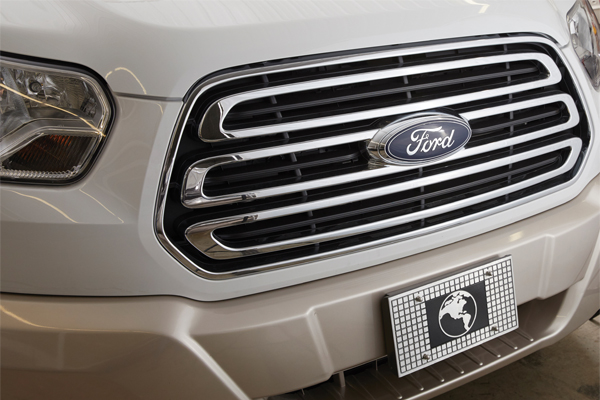

- Chrome Grill/Black Bumpers
CHASSIS STANDARD FEATURES
- 150 Cargo Van
- Air Conditioning – Front and Rear
- AM/FM/XM/USB/Bluetooth®
- 31-Gallon Fuel Tank
- Alternator 150 Amp
- Power Locks and Windows
- Power Steering
OPTIONS
SUGGESTED OPTIONS
- Premium Paint Package – Painted Full Body Cladding,
- Mirrors, Door Handles and Hood Vents
- Front Step Bumper
- Leather Seats
- Heated Seats
- Power Lumbar Front Seats
- Three-Way Power Sliding Rear Sofa
- Traditional Sport Roof
- Vista Cruiser Sport Roof with Full Panoramic Automotive Glass
- Power Rear Sunroof (Sport Roof only)
- Lighted Drink Holders
- USB Charging Ports
- Air Compressor and 12V Vacuum
- Indirect Lighting Dimmer Switch
- Dynamat® Sound Deadening in Floor
REAR ENTERTAINMENT OPTIONS
- 32″ HDTV with Blu-ray™, WiFi® Apps and USB Port (Sport Roof Only)
- Sub-Woofer for TV Sound System
- 110V Game Outlet with Inverter and HDMI Input
WHEEL AND TIRE OPTIONS
- 16″ Chrome Wheels with Michelin® LT225/75R16 Tires
- Special Fade Paint
CHASSIS OPTIONS
FORD TRANSIT VAN STANDARD EQUIPMENT
Model: 250 Medium Roof Van 148″ Wheelbase
AWD Optional on all models
*Only available thru Ford upfitters
POWERTRAIN/FUNCTIONAL:
- Auto High-Beam Headlamps
- Electronic Power Assist Steering
- Fordpass™ Connect 4G Wifi Hotspot Telematics Modem
- Forward Collision Warning
- Hill Start Assist
- Lane Keeping System
- Post-Collision Braking
- Pre-Collision Assist w/AEB
- Rear View Camera w/ Trailer Hitch Assist
- Selectable Drive Modes
- Side-Wind Stabilization
- Suspension – Heavy Duty Front Axle
EXTERIOR:
- Auxiliary Fuel Port
- Bumpers – Carbon Black
- Doors – Cargo Rear w/ 253-Degree Swing-Out
- Full Sized Spare Tire/Wheel
- Wipers – Rain Sensing
INTERIOR:
- Air Conditioning – Front
- Assist Handles – A-Pillar
- Assist Handles – B-Pillar
- Cargo Tie Down Hook(s)
- Center Console w/ Storage
- Interior Lighting – LED
- Locking Glove Box
- Powerpoint – 12V (Front)
- Steering – Tilt/Telescopic
SAFETY/SECURITY FEATURES:
- 3 Point Safety Belts
- AdvanceTrac® w/Roll Stability Control® (RSC)
- Air Bag – Front, Side and Safety Canopy® System
- Brakes – 4 Wheel Disc w/ABS
- Securilock® Anti-Theft System
- SOS Post-Crash Alert System™
- Tire Pressure Monitor System
CHASSIS SPECIFICATIONS:
- Preferred Equipment Package
- 3.5L Ecoboost V6 (Gas)
- 3.73 Limited Slip Axle
- Front License Plate Bracket
- Fixed Windows-All-Around
- Exterior Upgrade Package – SRW
- Autolamp
- 8670# GVWR Package
- 2 Way Drv/Pass Palazo Cloth
- 50 State Emissions
- Reverse Sensing System
- Modified Vehicle Wiring System
- Front Fog Lamps
- Rear Window Defroster
- Radio – Sync3, 8″ SCN w/Nav
- Adaptive Cruise Control
- Dual Alternators (250 AMP)
- Dual Batteries (70 AMP-HR)
- SRW Forged Aluminum
- BLIS w/ Cross Traffic Alert
- Extended Fuel Tank (31 Gal)
- Remote Start
- Illuminated Sun Visors
- Auxiliary Fuse Panel
- 6 Speakers (4 Front/2 Rear)
- Privacy Glass
- Side Sensing System
- Enhanced Active Park Assist
- Daytime Running Lamps
* All pricing & equipment subject to change without notice, see your dealer for details.
COLORS
Abyss Grey
* All pricing & equipment subject to change without notice, see your dealer for details.
SPECIFICATIONS
| EXTERIOR SPECIFICATIONS | REGULAR WHEELBASE | EXTENDED WHEELBASE | FACTORY MEDIUM ROOF EXTENDED |
|---|---|---|---|
| Wheelbase | 129.9″ | 147.6″ | 147.6″ |
| Length | 219.9″ | 237.6″ | 235.5″ |
| Height, (Low Top / Sport Roof) | 82.2″ / 94″ | 82.2″ / 94″ | 99.2″ |
| Body Width | 81.3″ | 81.3″ | 81.3″ |
| Swing-Out Side Doors – Height | 49.6″ | 49.6″ | 63″ Sliding Door |
| Swing-Out Side Doors – Width (both doors open) | 51.2″ | 51.2″ | 51.2″ |
| Rear Doors – Height | 46.9″ | 46.9″ | 62.8″ |
| Rear Doors – Width | 59.8″ | 59.8″ | 59.8″ |
| INTERIOR SPECIFICATIONS | REGULAR WHEELBASE | EXTENDED WHEELBASE | FACTORY MEDIUM ROOF EXTENDED |
|---|---|---|---|
| Headroom – Low Top | 51″ | 51″ | N /A |
| Headroom – Sport Roof | 62″ | 62″ | N /A |
| Headroom – Medium Roof | N/A | N/A | 67″ |
| Seating Capacity | 7 | 9 | 9 |
| Legroom – 1st Row Seating | 41.3″ | 41.3″ | 41.3″ |
| Legroom – 2nd Row Seating | 20″ | 17″ | 17″ |
| Legroom – 3rd Row Seating | 20″ | 17″ | 17″ |
| Legroom – 4th Row Seating | N/A | 17″ | 17″ |
| CHASSIS SPECIFICATIONS | REGULAR WHEELBASE | EXTENDED WHEELBASE | FACTORY MEDIUM ROOF EXTENDED |
|---|---|---|---|
| Chassis | 150 | 150 | 250 |
| Engine | 3.5L EcoBoost V6 | 3.5L EcoBoost V6 | 3.5L EcoBoost V6 |
| Horsepower | 310 | 310 | 310 |
| Transmission | 6-Speed Shift Automatic | 6-Speed Shift Automatic | 6-Speed Shift Automatic |
| Towing | 5,700 lbs. | 5,600 lbs. | 5,400 lbs. |
| Fuel Economy | 15 City / 19 Highway | 15 City / 19 Highway | 15 City / 19 Highway |
| Fuel Tank | 25-Gallon | 25-Gallon | 25-Gallon |
